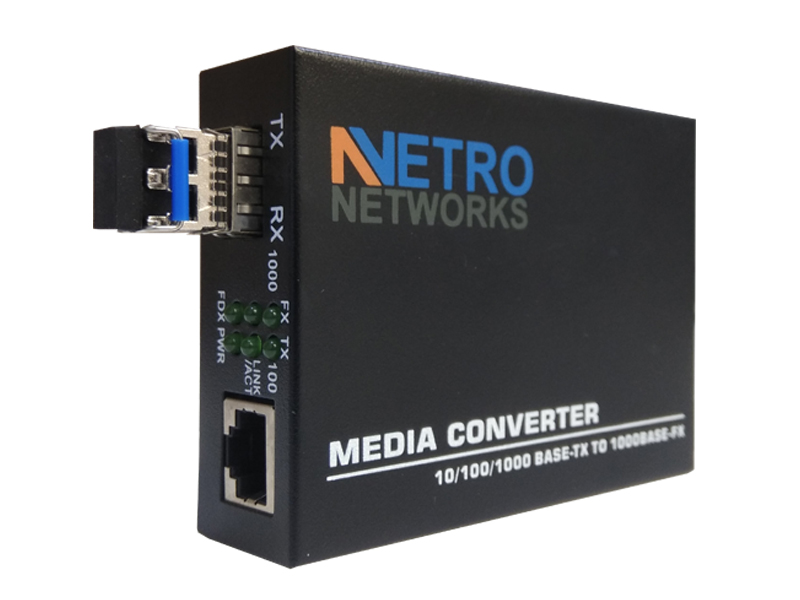

SFP Media Converter
NNM-SFP-MX
1000M SFP Media Converter
Short Description
- 10/100/1000M
- SFP Media Converter
- Without SFP
- 1G, External AC 220
- Adaptive Fast Ethernet Optical Media Converter
The NETRO 10/100/1000M SFP Media Converter adaptive fast Ethernet optical Media Converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100 Base-TX/1000 Base-Fx and 1000Base-FX network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 100 km’s relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
Technical Parameters for 10/100/1000M Adaptive Fast Ethernet Optical Media Converter | |
Number of Network Ports | 1 Channel |
Number of Optical Ports | 1 Channel |
NIC Transmission Rate | 10/100/1000Mbit/s |
NIC Transmission Mode | 10/100/1000M adaptive with support for automatic inversion of MDI/MDIX |
Optical Port Transmission Rate | 1000Mbit/s |
Operating Voltage | AC 100-220V or DC +5V |
Overall Power | <3W |
Network Ports | RJ45 Port |
Optical Specifications | Optical Port: SC, LC (Optional) |
Multi-Mode: 50/125, 62.5/125um | |
Single-Mode: 8.3/125, | |
8.7/125um, 8/125,10/125um | |
Wavelength: Single-Mode: 1310/1550nm | |
Data Channel | IEEE802.3x and collision base backpressure supported |
Working Mode: Full/half duplex supported | |
Transmission Rate: 1000Mbit/s | |
with error rate of zero |
- In accordance with Ethernet standards IEEE802.3, 10/100Base-TX/1000Base-TX and 1000Base-FX
- Supported Ports: LC for optical fiber; RJ45 for twisted pair
- Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
- Auto MDI/MDIX supported without need of cable selection
- Up to 6 LEDs for status indication of optical power port and UTP port
- External and built-in DC power supplies provided
- Up to 1024 MAC addresses supported
- 512 kb data storage integrated, and 802.1X original MAC address authentication supported
- Conflicting frames detection in half-duplex and flow control in full duplex supported
- LFP function can selectable before order
